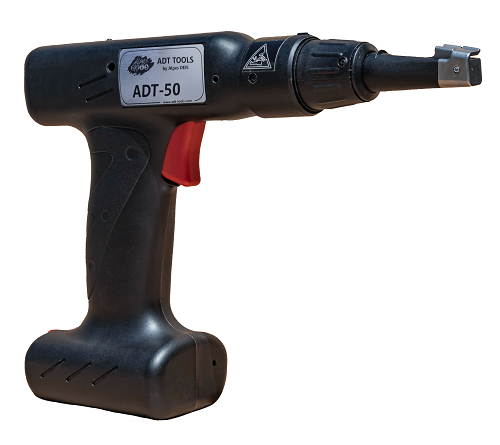

Power tool for plastic cable ties tightening ADT-50
Key points of the product
Sales reference : ADT50-PROD
This battery powered tool is intended to tighten small and medium tie wraps at a low force.
- For cable ties from 2.4 mm to 4.8 mm (0.09 - 0.18 in)
- 8 clamping positions from 65 N to 250 N (14.61 - 56.20 lbs)
Available documentation
Product characteristics
Ergonomy
- Developed with an ergonomist for a < 900g (1.9lbs) weight battery included
- Motorization allowing the reduction of musculoskeletal disorders (Msds) related to the use of manual tools
Autonomy
- Autonomy > 8h, equivalent to the clamping of 3200 tie wraps
- Rechargeable battery
- LED indicators on the tool and the battery to check the state of charge
Practical
- Narrow and 360° rotative head (ambidextrous tool facilitating the access to difficult areas)
- Fast cycle time <1s
- Adjustable and repeatable clamping
- Automatic cutting at the set torque with waste retention until the trigger is released (no waste on the ground)
- Perfect non-injurious cut
Durability
- Eased maintenance thanks to a kit, tool's head and blade easily replaceable
Available clamping torques for the ADT-50
The clamping level can be selected mechanically by selecting the position on the head.
Available clamping levels (estimative values)
| Setting | Min-max clamping tension ( Newton, N ) | Min-max clamping tension ( Pounds, lbs ) |
|---|---|---|
| Position 1 | 65 – 83 | 14.61 – 18.66 |
| Position 2 | 81 – 107 | 18.21 – 24.05 |
| Position 3 | 97 – 131 | 21.81 – 29.45 |
| Position 4 | 113 – 151 | 25.40 – 33.95 |
| Position 5 | 129 – 179 | 29.00 – 40.24 |
| Position 6 | 145 – 203 | 32.60 – 45.64 |
| Position 7 | 161 – 226 | 36.19 – 50.81 |
| Position 8 | 175 – 250 | 39.34 – 56.20 |
It is possible to use the tool with other brands such as (subject to validation by each customer) : Advanced Cable Ties, HellermannTyton, ABB, Panduit, Legrand…
